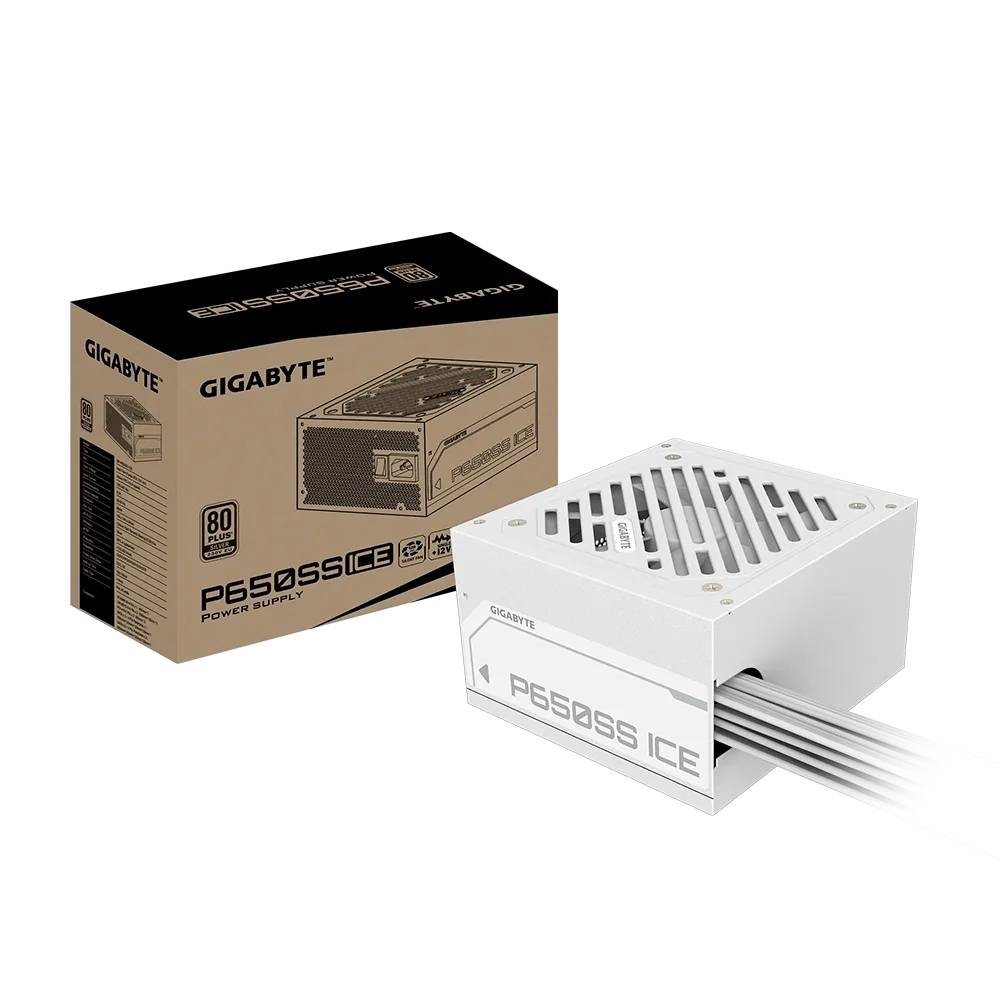

model
gp-p650ss ice
type
intel form factor atx 12v v3.0
pfc
active pfc (>0.9 typical)
input voltage
155-240 vac
input current
6.3a
input frequency
60-50 hz
output capacity
650w
dimension
150 x 140 x 86 mm
fan type
120mm fluid dynamic bearing (fdb) fan
80 plus
silver
efficiency
90% at typical load (230v eu)
mtbf
>100,000 hours
protection
ovp/opp/scp/uvp/ocp/otp
power good signal
100-150ms
hold up time
>16ms
cable type
flat, all white
connectors
atx/mb 20+4 pin x 1 : 600mm*1
cpu/eps 4+4 pin x 2 : 650mm+120mm*1
pci-e 6+2 pin x 2 : 600mm*2
sata x 3 + 4 pin peripheral x 1 : 500mm+120mm+120mm+120mm*1
sata x 2 + 4 pin peripheral x 2 : 500mm+120mm+120mm+120mm*1
