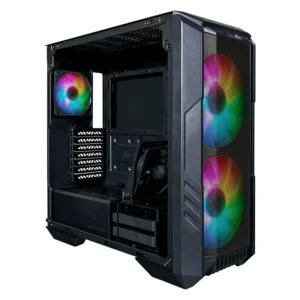

GABINETE COOLER MASTER HAF 500 BLACK

exterior color black
materials – outlook steel mesh plastic
materials – side panel tempered glass steel
dimensions (l x w x h) 516 x 224 x 510mm (incl. protrusions)
motherboard support itx micro atx atx ssi ceb e-atx* (*up to 12a x 14.1a may impact cable management and case features remove cable cover and gpu fan bracket features)
expansion slots 7
5.25a drive bays n-a
2.5a – 3.5a drive bays (combo) 2
2.5a drive bays 2
i-o panel 2x usb 3.2 gen 1 (formerly usb 3.0) 1x usb 3.2 gen 2 type-c 1x single audio jack 1x reset-argb button
argb controller argb hub
pre-installed fans – front 2x 200mm argb fan
pre-installed fans – rear 1x 120mm sickleflow pwm argb
pre-installed fans – top on hdd cage 1x 120mm sickleflow pwm (gpu fan)
fan support – top 3x 120mm 2x 140mm 2x 200mm
fan support – front 3x 120mm 2x 140mm 2x 200mm *200mm mounting hole spacing 154 x 154 w- up to 30mm thickness
fan support – rear 1x 120mm
fan support – top on hdd cage 1x 120mm
radiator support – top 120mm 140mm 240mm 280mm 360mm
radiator support – front 120mm 140mm 200mm 240mm 280mm 360mm
radiator support – rear 120mm
clearance – cpu cooler 167mm-6.5a
clearance – psu 180mm-7.1a
clearance – gfx 410mm-16.1a
cable routing – behind motherboard tray 30mm
dust filters top bottom
power supply support bottom mount atx
series haf series
size mid tower
