model

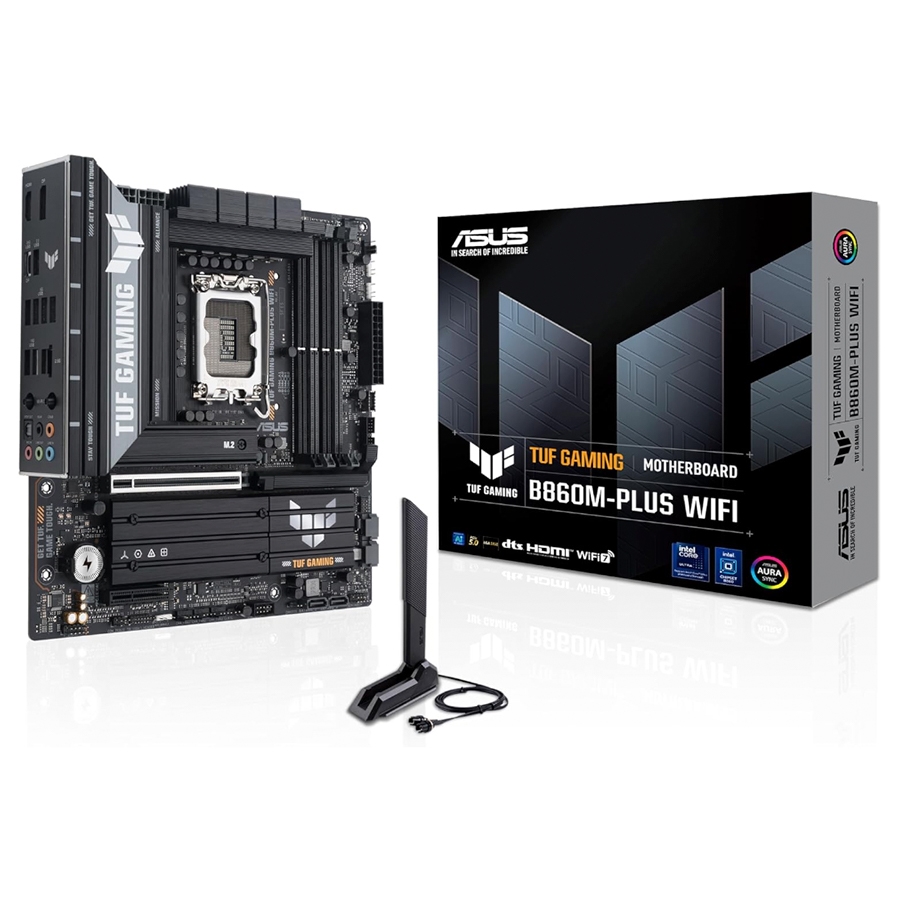

tuf gaming b860m-plus wifi
news & updates
please visit our global website to check anddownload the latest updates.
cpu
support intel® core™ ultra processors (series 2) ,lga1851*
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0
*refer to https://www.asus.com/support/download-center/ for cpu support list.
intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel® b860 chipset
memory
4 x dimm slots, max. 256gb, ddr5
support up to 8800+mt/s (oc), non-ecc,un-buffered ,clocked unbuffered dimm (cudimm)*
dual channel memory architecture
dimm fit
supports intel® extreme memory profile (xmp) memory module
asus enhanced memory profile iii(aempiii)
supported memory types, data rate (speed), and number of dram modules vary depending on the cpu and memory configuration, for more information please refer to cpu/memory support list under the support tab of product information site or visit https://www.asus.com/support/download-center/. adjustments will be made based on the specifications of mass-produced memory products available on the market.
non-ecc, un-buffered ddr5 memory supports on-die ecc function.
graphics
1 x displayport
1 x hdmi™ port*
1 x usb 20gbps port (usb type-c®) supports displayport video output
graphics specifications may vary between cpu types. please refer to www.intel.com for any updates.
supports max. 4k@60hz as specified in displayport 1.4.
*supports 4k@60hz as specified in hdmi 2.1.
vga resolution support depends on processors’ or graphic cards’ resolution.
*while installing the operating system, please ensure that your monitor is connected to the hdmi port on the back i/o panel or to a discrete graphics card.
expansion slots
intel® coretm ultra processors(series 2)*
1 x pcie 5.0 x16 slot
intel® b860 chipset
1 x pcie 4.0 x4 slot
to ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
